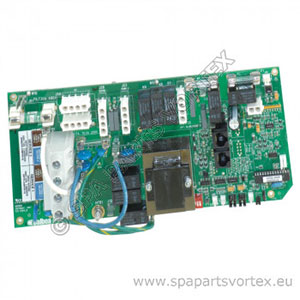

Balboa GS501DZ PCB

Precio: 562,80 € ex. IVA

Codigo del articulo: CB-GD501

Estado del stock en tiempo real: órdenes serán enviadas en torno a 14 días a partir de la fecha del pedido

Type of Product:	PCB or Circuit Board
Manufacturer:	Balboa
Power:	Volts: 230 Hz: 50 Watts: Amps: HP:
Specifications:	Pump 1: Single or dual speed + circulation pump if required Pump 2: If no blower Pump 3: N/A Air Blower: Yes (optional) Heater: Yes Ozone: Yes Light: 12 volt Sensor style: M7 x 2 Pressure Switch: No
Compatible With:	GS501DZ control box. Topside controls from the Serial Deluxe range such as the VL801D and the VL802D. This is not a common board but some variations are in circulation. You need to be sure if you are trying to fit this with any other version of a 501DZ other than the exact like for like GS501DZ.
Dimensions:	Length: 280 mm Height: 130 mm
Additional Notes:	This PCB is used as a replacement for an existing GS501DZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty. SPECIAL NOTE J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE. EXCHANGE FUSE TO 20 AMP IF USING A PUMP OR ADD LINK WIRE AS SHOWN ON REVERSE OF LID.
